304 Stainless Steel Tube
- Standards: GB, AISI, ASTM, DIN, EN, JIS, SUS, etc
- Grade: 201, 430, 304, 304L, 316, 316L, 310S, 317, 317L, 321, 904L, 2205, 2507, 31803
- Technical Treatment: Cold Rolled, Hot Rolled
- Shape: Round Tube, Rectangular Tube, Square Tube
- Surface Finish: Polishing, Pickling, Bright, Hairline, Mirror
- Wall Thickness: 1mm-150mm(SCH10-XXS)
- Outer Diameter: 6mm-2500mm (3/8″-100″)
Product Description
304 stainless steel tube has become the most versatile and widely used stainless steel sheet among austenitic stainless steels due to its high chromium-nickel content and low carbon content. 304 stainless steel, sometimes referred to as “18-8”, has better corrosion resistance than 301 stainless steel or 302 stainless steel, and has excellent tensile and forming characteristics. It will provide satisfactory service at high temperatures, although carbide precipitation may occur with prolonged exposure in the temperature range of 800°F-1600°F.
Equivalent Material
| Standard | Werkstoff Nr. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 201 | 1.4372 | S20100 | SUS 201 | 904S13 | STS 317J5 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 310S | 1.4845 | S31008 | SUS 310S | 310S16 | 20Ch23N18 | - | X8CrNi25-21 |
| SS 316 | 1.4401 | S31600 | SUS 316 | 316S16 | 0Cr17Ni12Mo2 | Z7CND17-11-02 | X5CrNiMo17-12-2 |
| SS 316L | 1.4404 | S31603 | SUS 316L | 316S12 | 03Ch17N13M2 | Z2CND17-12 | X2CrNiMo17-12-2 |
| SS 317 | 1.4449 | S31700 | SUS 317 | - | - | Z6CND17-12-04 | X3CrNiMo18-12-3 |
| SS 317L | 1.4428 | S31703 | SUS 317L | 317S12 | - | Z3CND19-15-04 | X2CrNiMoN18-15-4 |
| SS 321 | 1.4541 | S32100 | SUS 321 | 321S12 | 06Ch18N10T | Z6CNT18-10 | X6CrNiTi18-10 |
| SS 430 | 1.4016 | S43000 | SUS 430 | 430S15 | 12Ch17 | Z8C17 | X6Cr17 |
| SS 904L | 1.4539 | - | SUS 890L | 904S13 | - | Z2NCDU25-20 | X1NiCrMoCu25-20-5 |
Chemical Composition
| Standard | Cr | Ni | C | Mn | Si | P | S | N | Other |
|---|---|---|---|---|---|---|---|---|---|
| SS 201 | 16–18 | 3.5–5.5 | 0.15 | 5.5–7.5 | 0.75 | 0.06 | 0.03 | 0.25 | - |
| SS 304 | 18–20 | 8–10.5 | 0.08 | 2 | 0.75 | 0.045 | 0.03 | 0.01 | - |
| SS 304L | 18–20 | 8–12 | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 0.01 | - |
| SS 310S | 24–26 | 19–22 | 0.08 | 2 | 1.5 | 0.045 | 0.03 | - | - |
| SS 316 | 16–18 | 10–14 | 0.08 | 2 | 0.75 | 0.045 | 0.03 | 0.10 | Mo 2.0-3.0 |
| SS 316L | 16–18 | 10-14 | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 0.10 | Mo 2.0-3.0 |
| SS 317 | 19 | 13 | 0.08 | 2 | 1 | 0.045 | 0.03 | - | - |
| SS 317L | 18-20 | 11-15 | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 0.10 max. | Mo 3.0-4.0 |
| SS 321 | 17–19 | 9-12 | 0.08 | 2 | 0.75 | 0.045 | 0.03 | 0.1 | Ti 0.7 |
| SS 430 | 16–18 | 0.75 | 0.12 | 1 | 1 | 0.04 | 0.03 | - | - |
| SS 904L | 19-23 | 23–28 | 0.02 | 2 | 1 | 0.045 | 0.035 | - | Cu 1.0-2.0 |
Surface Finish
Stainless steel not only has corrosion resistance but also has the advantages of heat resistance, workability, strength, and appearance. Baoxin Steel takes advantage of the properties of stainless steel to improve quality through various surface treatments. Baoxin Steel provides different types of stainless steel surface treatment processes, such as BA, 2B, 2D, 2K, 4K, 6K, 8K, NO.4, HL, SB, Embossed, etc.
Our Service
Baoxin Steel offers a wide range of advanced and standard stainless steel machining services for stainless steel products. We specialize in providing customized machining services to meet your most challenging stainless steel needs. The stainless steel services we can provide include turning, milling, planing, drilling, boring, grinding, gear cutting, and CNC machining services. Of course, we can also provide deformation processing services such as bending, cutting, rolling, and stamping.

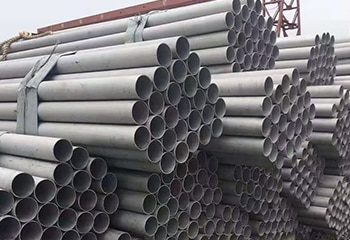

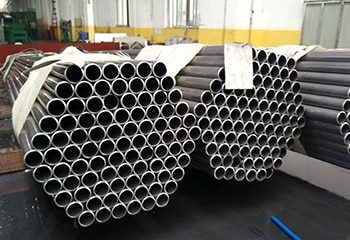

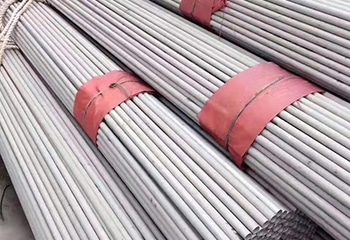

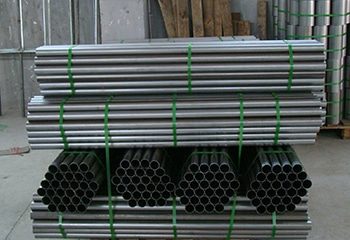

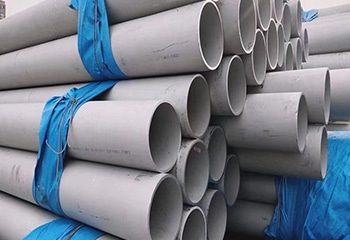

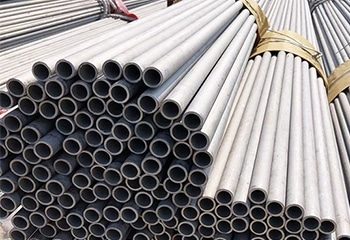

Packaging And Shipping
Contact Us
We offer our customers the opportunity to increase profitability by meeting their just-in-time production schedules and offering customized services to meet end-user-specific requirements. Baoxin Steel has always been committed to improving customer service and product quality and providing high-value solutions for customers’ businesses. Satisfying the needs of customers is our daily work goal!
