201 Stainless Steel Rod
- Standards: GB, AISI, ASTM, DIN, EN, JIS, SUS, etc
- Grade: 201, 430, 304, 304L, 316, 316L, 310S, 317, 317L, 321, 904L, 2205, 2507, 31803
- Technical Treatment: Cold Rolled, Hot Rolled
- Shape: Round, Square, Flat, Hexagonal
- Size: Customized
- Length: 2~6m or customized as required
- Surface Finish: Primary, Bright Polished
Product Description
201 stainless steel rod is an austenitic chromium-nickel-manganese stainless steel coil developed to save a nickel. 201 stainless steel rod is a low-cost alternative to traditional Cr-Ni stainless steels such as 301 and 304. 201 stainless steel rod replaces nickel by adding manganese and nitrogen. It is not hardenable by heat treatment but can be cold worked to high tensile strength. 201 stainless steel is essentially non-magnetic in the annealed condition but becomes magnetic when cold-worked. In many applications, 201 stainless steel can replace 301 stainless steel.
Equivalent Material
| Standard | Werkstoff Nr. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 201 | 1.4372 | S20100 | SUS 201 | 904S13 | STS 317J5 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 310S | 1.4845 | S31008 | SUS 310S | 310S16 | 20Ch23N18 | - | X8CrNi25-21 |
| SS 316 | 1.4401 | S31600 | SUS 316 | 316S16 | 0Cr17Ni12Mo2 | Z7CND17-11-02 | X5CrNiMo17-12-2 |
| SS 316L | 1.4404 | S31603 | SUS 316L | 316S12 | 03Ch17N13M2 | Z2CND17-12 | X2CrNiMo17-12-2 |
| SS 317 | 1.4449 | S31700 | SUS 317 | - | - | Z6CND17-12-04 | X3CrNiMo18-12-3 |
| SS 317L | 1.4428 | S31703 | SUS 317L | 317S12 | - | Z3CND19-15-04 | X2CrNiMoN18-15-4 |
| SS 321 | 1.4541 | S32100 | SUS 321 | 321S12 | 06Ch18N10T | Z6CNT18-10 | X6CrNiTi18-10 |
| SS 430 | 1.4016 | S43000 | SUS 430 | 430S15 | 12Ch17 | Z8C17 | X6Cr17 |
| SS 904L | 1.4539 | - | SUS 890L | 904S13 | - | Z2NCDU25-20 | X1NiCrMoCu25-20-5 |
Chemical Composition
| Standard | Cr | Ni | C | Mn | Si | P | S | N | Other |
|---|---|---|---|---|---|---|---|---|---|
| SS 201 | 16–18 | 3.5–5.5 | 0.15 | 5.5–7.5 | 0.75 | 0.06 | 0.03 | 0.25 | - |
| SS 304 | 18–20 | 8–10.5 | 0.08 | 2 | 0.75 | 0.045 | 0.03 | 0.01 | - |
| SS 304L | 18–20 | 8–12 | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 0.01 | - |
| SS 310S | 24–26 | 19–22 | 0.08 | 2 | 1.5 | 0.045 | 0.03 | - | - |
| SS 316 | 16–18 | 10–14 | 0.08 | 2 | 0.75 | 0.045 | 0.03 | 0.10 | Mo 2.0-3.0 |
| SS 316L | 16–18 | 10-14 | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 0.10 | Mo 2.0-3.0 |
| SS 317 | 19 | 13 | 0.08 | 2 | 1 | 0.045 | 0.03 | - | - |
| SS 317L | 18-20 | 11-15 | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 0.10 max. | Mo 3.0-4.0 |
| SS 321 | 17–19 | 9-12 | 0.08 | 2 | 0.75 | 0.045 | 0.03 | 0.1 | Ti 0.7 |
| SS 430 | 16–18 | 0.75 | 0.12 | 1 | 1 | 0.04 | 0.03 | - | - |
| SS 904L | 19-23 | 23–28 | 0.02 | 2 | 1 | 0.045 | 0.035 | - | Cu 1.0-2.0 |
Surface Finish
Stainless steel not only has corrosion resistance but also has the advantages of heat resistance, workability, strength, and appearance. Baoxin Steel takes advantage of the properties of stainless steel to improve quality through various surface treatments. Baoxin Steel provides different types of stainless steel surface treatment processes, such as BA, 2B, 2D, 2K, 4K, 6K, 8K, NO.4, HL, SB, Embossed, etc.
Our Service
Baoxin Steel offers a wide range of advanced and standard stainless steel machining services for stainless steel products. We specialize in providing customized machining services to meet your most challenging stainless steel needs. The stainless steel services we can provide include turning, milling, planing, drilling, boring, grinding, gear cutting, and CNC machining services. Of course, we can also provide deformation processing services such as bending, cutting, rolling, and stamping.

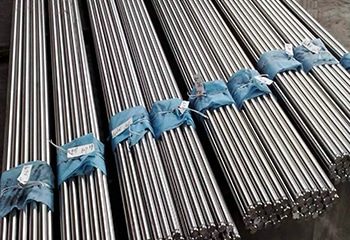

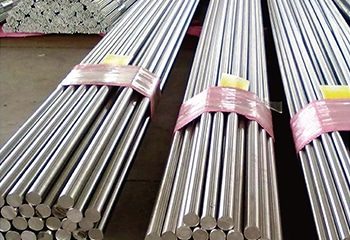

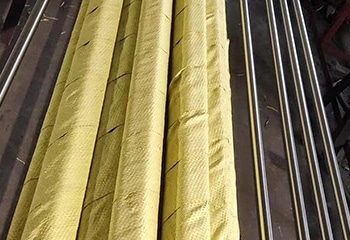

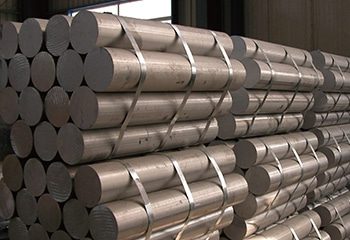

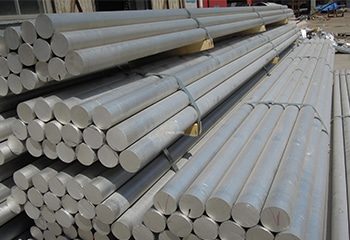

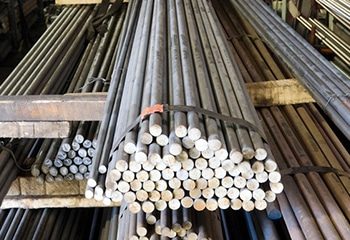

Packaging And Shipping
Contact Us
We offer our customers the opportunity to increase profitability by meeting their just-in-time production schedules and offering customized services to meet end-user-specific requirements. Baoxin Steel has always been committed to improving customer service and product quality and providing high-value solutions for customers’ businesses. Satisfying the needs of customers is our daily work goal!
