321 Stainless Steel Coil
- Standard: GB, AISI, ASTM, DIN, EN, JIS
- Certification: SGS, ISO, ROHS
- Technical Treatment: Cold Rolled, Hot Rolled
- Thickness: 0.03mm-300mm or customized as required
- Width: 3mm-2500mm or customized as required
- Length: Customized as required
- Surface Finish: BA, 2B, 2D, 4K, 6K, 8K, NO.4, HL, SB, etc
Product Description
321 stainless steel coils contain at least five times the titanium content as carbon to overcome the tendency to sensitize during welding. The corrosion resistance of 321 stainless steel is similar to that of 304 stainless steel, but 321 stainless steel performs better in the sensitization range of 800℉-1650℉. In 321 stainless steel, titanium oxides or carbonitrides may form tiny black or dark gray inclusions. When the metal is ground or polished, these inclusions may appear and spoil the surface appearance, but do not impair the metal’s utility or machinability, and are beneficial for wear resistance.
Equivalent Material
| Standard | Werkstoff Nr. | UNS | JIS | BS | GOST | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 201 | 1.4372 | S20100 | SUS 201 | 904S13 | STS 317J5 | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
| SS 304 | 1.4301 | S30400 | SUS 304 | 304S31 | 08Х18Н10 | Z7CN18‐09 | X5CrNi18-10 |
| SS 304L | 1.4306 / 1.4307 | S30403 | SUS 304L | 3304S11 | 03Х18Н11 | Z3CN18‐10 | X2CrNi18-9 / X2CrNi19-11 |
| SS 310S | 1.4845 | S31008 | SUS 310S | 310S16 | 20Ch23N18 | - | X8CrNi25-21 |
| SS 316 | 1.4401 | S31600 | SUS 316 | 316S16 | 0Cr17Ni12Mo2 | Z7CND17-11-02 | X5CrNiMo17-12-2 |
| SS 316L | 1.4404 | S31603 | SUS 316L | 316S12 | 03Ch17N13M2 | Z2CND17-12 | X2CrNiMo17-12-2 |
| SS 317 | 1.4449 | S31700 | SUS 317 | - | - | Z6CND17-12-04 | X3CrNiMo18-12-3 |
| SS 317L | 1.4428 | S31703 | SUS 317L | 317S12 | - | Z3CND19-15-04 | X2CrNiMoN18-15-4 |
| SS 321 | 1.4541 | S32100 | SUS 321 | 321S12 | 06Ch18N10T | Z6CNT18-10 | X6CrNiTi18-10 |
| SS 430 | 1.4016 | S43000 | SUS 430 | 430S15 | 12Ch17 | Z8C17 | X6Cr17 |
| SS 904L | 1.4539 | - | SUS 890L | 904S13 | - | Z2NCDU25-20 | X1NiCrMoCu25-20-5 |
Chemical Composition
| Standard | Cr | Ni | C | Mn | Si | P | S | N | Other |
|---|---|---|---|---|---|---|---|---|---|
| SS 201 | 16–18 | 3.5–5.5 | 0.15 | 5.5–7.5 | 0.75 | 0.06 | 0.03 | 0.25 | - |
| SS 304 | 18–20 | 8–10.5 | 0.08 | 2 | 0.75 | 0.045 | 0.03 | 0.01 | - |
| SS 304L | 18–20 | 8–12 | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 0.01 | - |
| SS 310S | 24–26 | 19–22 | 0.08 | 2 | 1.5 | 0.045 | 0.03 | - | - |
| SS 316 | 16–18 | 10–14 | 0.08 | 2 | 0.75 | 0.045 | 0.03 | 0.10 | Mo 2.0-3.0 |
| SS 316L | 16–18 | 10-14 | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 0.10 | Mo 2.0-3.0 |
| SS 317 | 19 | 13 | 0.08 | 2 | 1 | 0.045 | 0.03 | - | - |
| SS 317L | 18-20 | 11-15 | 0.03 | 2 | 0.75 | 0.045 | 0.03 | 0.10 max. | Mo 3.0-4.0 |
| SS 321 | 17–19 | 9-12 | 0.08 | 2 | 0.75 | 0.045 | 0.03 | 0.1 | Ti 0.7 |
| SS 430 | 16–18 | 0.75 | 0.12 | 1 | 1 | 0.04 | 0.03 | - | - |
| SS 904L | 19-23 | 23–28 | 0.02 | 2 | 1 | 0.045 | 0.035 | - | Cu 1.0-2.0 |
Surface Finish
Stainless steel not only has corrosion resistance but also has the advantages of heat resistance, workability, strength, and appearance. Baoxin Steel takes advantage of the properties of stainless steel to improve quality through various surface treatments. Baoxin Steel provides different types of stainless steel surface treatment processes, such as BA, 2B, 2D, 2K, 4K, 6K, 8K, NO.4, HL, SB, Embossed, etc.
Our Service
Baoxin Steel offers a wide range of advanced and standard stainless steel machining services for stainless sheet products. We specialize in providing customized machining services to meet your most challenging stainless steel needs. The stainless steel services we can provide include turning, milling, planing, drilling, boring, grinding, gear cutting, and CNC machining services. Of course, we can also provide deformation processing services such as bending, cutting, rolling, and stamping.

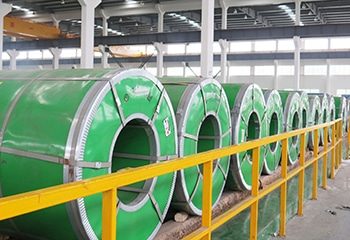

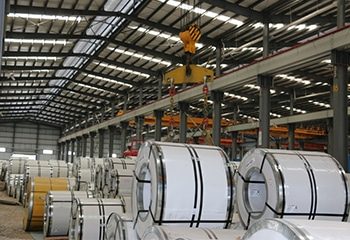

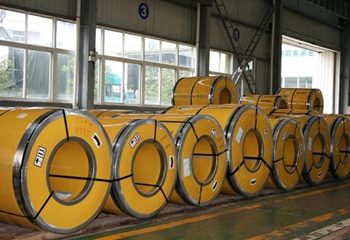

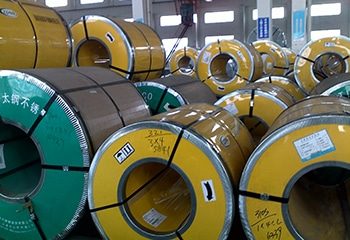

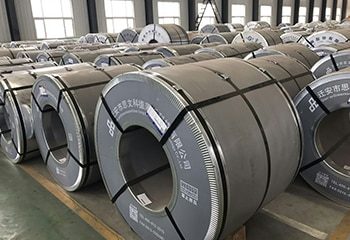

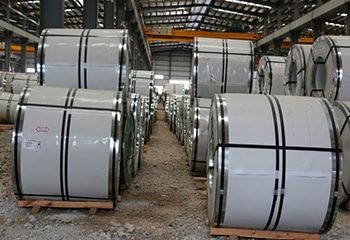

Packaging And Shipping
Contact Us
We offer our customers the opportunity to increase profitability by meeting their just-in-time production schedules and offering customized services to meet end-user-specific requirements. Baoxin Steel has always been committed to improving customer service and product quality and providing high-value solutions for customers’ businesses. Satisfying the needs of customers is our daily work goal!
